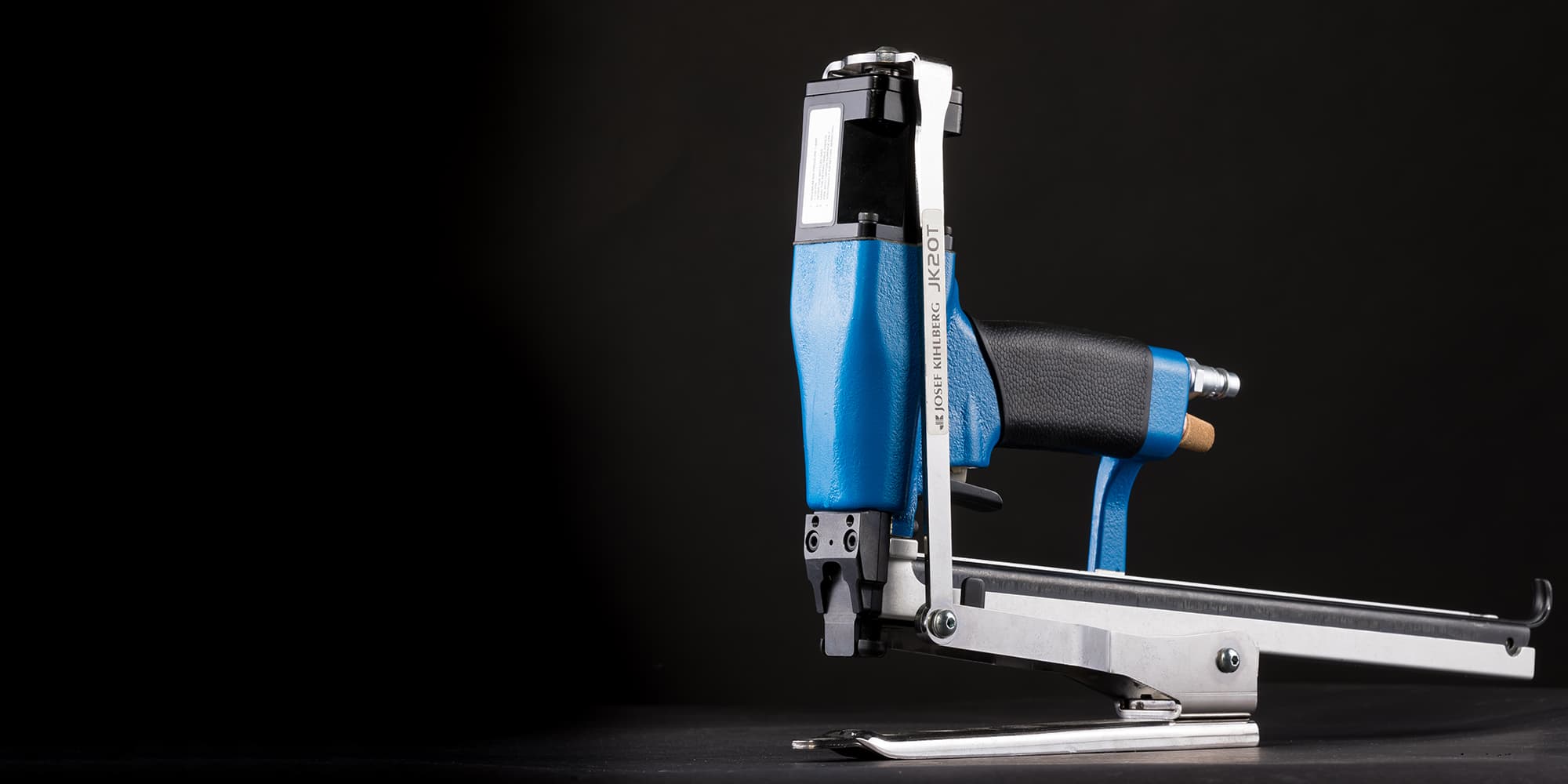

Zangenhefter JK20T779L

Zangenhefter JK20T779L

Der JK20T779L ist ein in Schweden hergestellter Hochleistungszangenhefter für Fachleute. Charakteristisch für dieses Werkzeug ist sein ruhiges, schnelles Heften, sein geringes Gewicht und guter Ausgleich. Aufgrund des Designs des Ambosses kann das Material vorsichtig gehandhabt werden. Das Werkzeug ist in erster Linie für das Heften von Verpackungen bestimmt, wie Verpackungen, Taschen, Folien, Beutel und verschiedene Stoffarten, eignet sich aber auch ideal für Anwendungen wie das industrielle Heften und das Verbinden von unterschiedlichen Materialien.

Technische Daten

  • Artikelnummer 126138
  • Gewicht 2.3 kg ( 5.1 lbs )
  • Dimensies 375 × 68 × 250 mm ( 14.8 x 2.7 x 9.8 in )
  • Magazinkapazität 168 Klammern
  • Klammerschenkellänge 8 - 16 mm ( 5/16 - 5/8 in )
  • Schenkellänge 375 mm ( in )

    • Zubehör

    • O-ring kit JK20T O-ring kit JK20T #143124
      $40.48
    • Repair kit JK20T779 Repair kit JK20T779 #143126
      $89.29

    Klammern

    M=Mille= 1000 Stk
    • JK779-08 JK779-08 [100 M] #400368
      $393.00
    • JK779-10 JK779-10 [100 M] #400370
      $396.00
    • JK779-12 JK779-12 [100 M] #400372
      $420.00
    • JK779-14 JK779-14 [80 M] #400373
      $412.00
    • JK779-16 JK779-16 [80 M] #400375
      $433.00

    Ersatzteile

    Klicken Sie auf die Zahlen, um Teile auszuwählen
  • Zangenhefter JK20T779L Ersatzteile
    Screw
    #946608

    Screw

    $1.94
    Valve stem
    #191085

    Valve stem

    $5.19
    Screw
    #946662

    Screw

    $1.94
    Cap assy JK20T
    #139369

    Cap assy JK20T

    $121.87
    O-ring
    #972010

    O-ring

    $2.20
    Bushing
    #978022

    Bushing

    $3.37
    O-ring
    #972023

    O-ring

    $2.20
    Placeholder
    #190167

    Piston rod JK20T

    $75.54
    O-ring
    #972018

    O-ring

    $2.60
    Placeholder
    #149089

    Bumper

    $6.94
    Screw
    #946786

    Screw

    $1.87
    Washer
    #947039

    Washer

    $2.60
    Washer
    #975009

    Washer

    $1.44
    Placeholder
    #150251

    Spacer

    $2.39
    Placeholder
    #163342

    Power arm

    $51.67
    Washer
    #947012

    Washer

    $1.94
    Case cap screw nut
    #946002

    Case cap screw nut

    $1.94
    O-ring
    #972030

    O-ring

    $2.20
    O-ring
    #972039

    O-ring

    $2.20
    Valve cage
    #191084

    Valve cage

    $24.29
    Spring
    #173066

    Spring

    $1.94
    O-ring
    #972031

    O-ring

    $2.20
    O-ring
    #972040

    O-ring

    $2.20
    Nut
    #146102

    Nut

    $6.51
    O-ring
    #972021

    O-ring

    $2.20
    Nipple 1/4"
    #987023

    Nipple 1/4″

    $5.65
    Sound absorber
    #971004

    Sound absorber

    $11.04
    Trigger
    #165040

    Trigger

    $9.31
    Tension pin
    #945039

    Tension pin

    $2.06
    Screw
    #946705

    Screw

    $1.87
    Lock washer
    #947008

    Lock washer

    $1.94
    Mag. lid 777.779 l=330mm
    #170119

    Mag. lid 777.779 l=330mm

    $42.70
    Pusher 777.779
    #161208

    Pusher 777.779

    $21.67
    Feeder spring 218mm
    #173054

    Feeder spring 218mm

    $4.98
    Lock spring
    #173052

    Lock spring

    $2.39
    Placeholder
    #132230

    Magazin JK20T779L l=330mm

    $210 291.32
    Retainer
    #951037

    Retainer

    $1.94
    Lock piston
    #160051

    Lock piston

    $9.98
    Lock cage
    #150121

    Lock cage

    $4.11
    Placeholder
    #132688

    Klammerträger 779 l=330mm

    $171 249.32
    Rear bracket for tongue
    #156955

    Rear bracket for tongue

    $52.99
    Nut
    #176617

    Nut

    $5.74
    Bracket
    #176616

    Bracket

    $68.89
    Placeholder
    #158223

    Tongue JK20T

    $56.03
    Placeholder
    #946654

    Screw

    $1.94
    Screw
    #946641

    Screw

    $1.94
    Placeholder
    #157075

    Carton protector JK20T

    $21.89
    Door
    #166209

    Door

    $45.07
    Guide door
    #135613

    Guide door

    $73.08
    Placeholder
    #166216

    Rear nozzle plate

    $67.99
    O-ring
    #972071

    O-ring

    $2.20
    Cage JK20
    #150409

    Cage JK20

    $31.22
    O-ring
    #972007

    O-ring

    $2.20
    Piston stop
    #149054

    Piston stop

    $6.94
    Seal for back valve
    #148015

    Seal for back valve

    $5.10
    O-ring
    #972028

    O-ring

    $2.51
    Cylinder JK20
    #190066

    Cylinder JK20

    $103.81
    Placeholder
    #136074

    Cylinder with seal JK20

    $78.36
    Cylinder top ring JK20
    #150102

    Cylinder top ring JK20

    $38.58
    Driver blade 779 L=75.5mm
    #164057

    Driver blade 779 L=75.5mm

    $38.06
    Driver pin
    #145099

    Driver pin

    $3.25
    Piston rings JK20
    #972124

    Piston rings JK20

    $12.35
    Piston compl 779 l=84mm
    #134163

    Piston compl 779 l=84mm

    $63.40
    O-ring
    #972177

    O-ring

    $1.83
    Cylinder cap JK20T
    #150428

    Cylinder cap JK20T

    $40.32
    Compression washer
    #149071

    Compression washer

    $12.77
    Gasket
    #148037

    Gasket

    $4.11
    O-ring
    #972032

    O-ring

    $2.20
    Placeholder
    #190113

    Cylinder JK20T

    $140.33
    Label
    #110040

    Label

    $1.71
