A3L783

A3L783

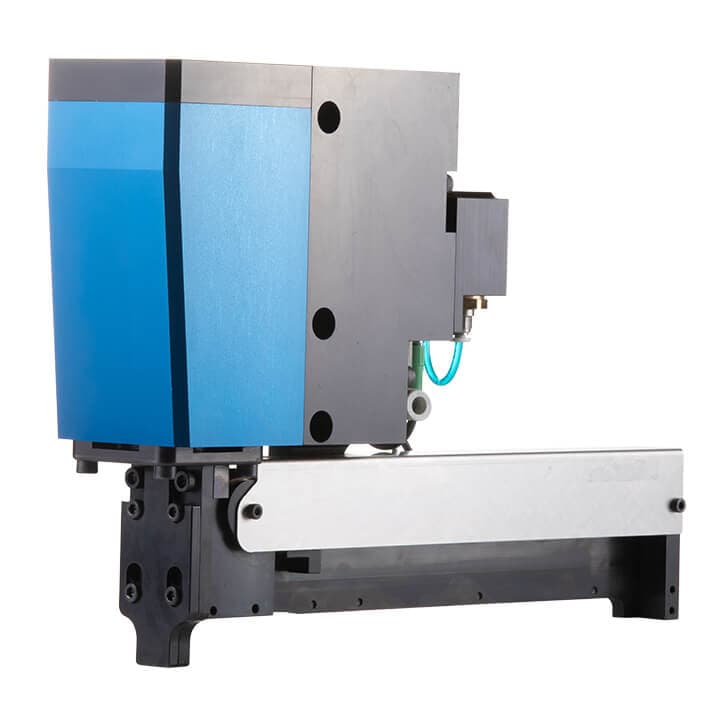

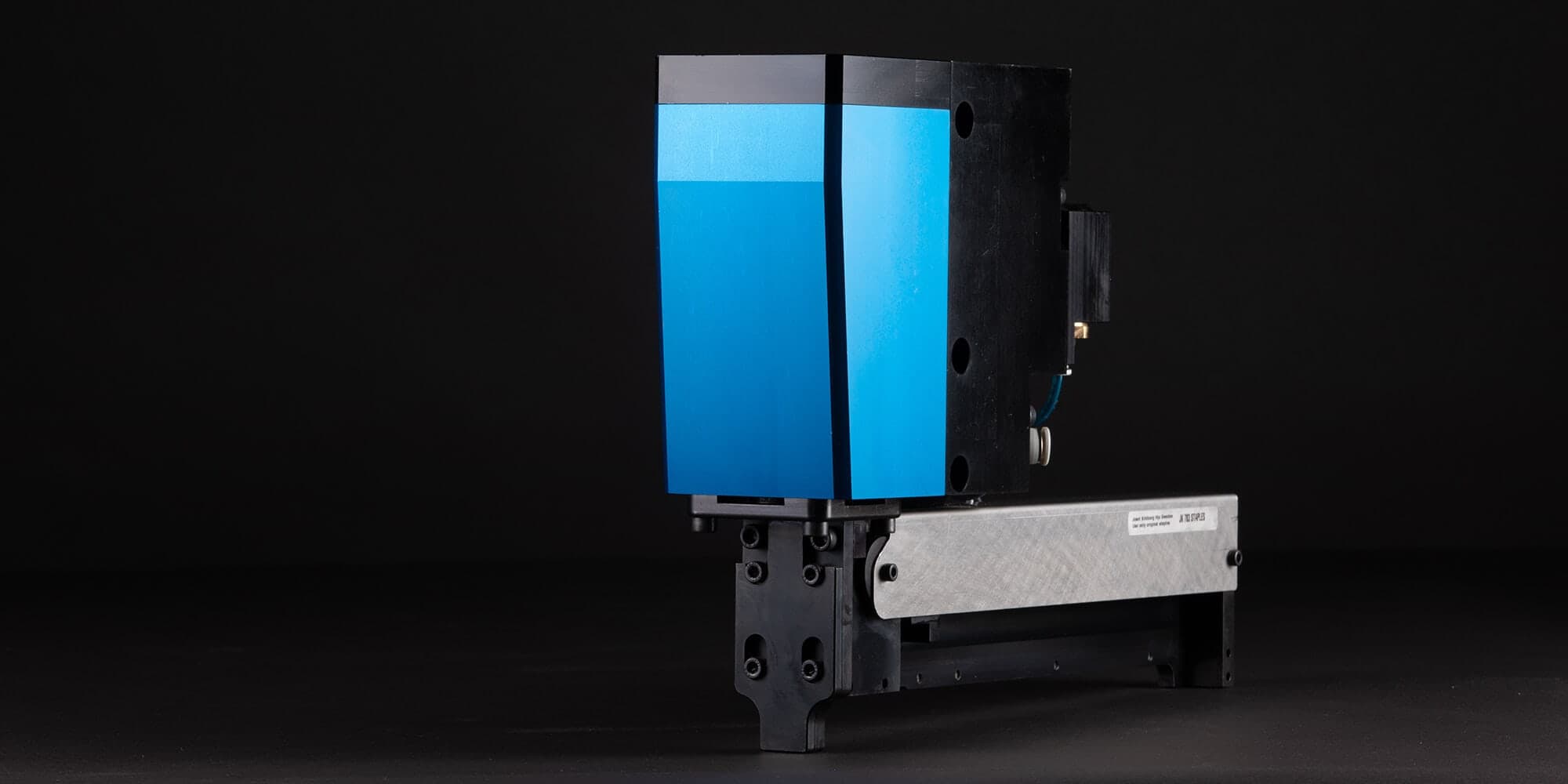

JK A-Fast A3L783 automation fastening system is built for 24/7 operations with a flawless uptime. The long magazine capacity model L is excellent for production lines where a lot of material needs to be processed. The unit has a high firing rate up to 500 rounds per minute. Moreover, the unit has a magazine sensor for full control over loading status and a feeding controller for full control of staple consumption. It´s durable with top of the line quality components engineered together for perfect performance and use a single connector for all functions. Making the system easy to integrate and operate in any production line. It is available in both pneumatic and electric actuation.

Technical Data

  • Article No. 126561
  • Weight 8.1 kg ( 17.9 lbs )
  • Dimensions 568 × 85 × 275 mm ( 22.4 x 3.3 x 10.8 in )
  • Magazine capacity 207 klammer
  • Staple leg length 25 – 51 mm ( 1 – 2 in )
  • Max. pressure 7 bar ( 102 psi )
  • Speed (actuation time) 60 ms
  • Power supply 24V DC, sensor type PNP
  • Working pressure 5 – 7 bar ( 70 – 100 psi )
  • Nose length 21 mm ( 0.8 in )

    • Fasteners

    M=Mille=1000 pcs
    • Placeholder JK783-25CC [10 M] #400433
      797,90 kr
    • Placeholder JK783-29CC [10 M] #400434
      862,50 kr
    • Placeholder JK783-32CC [10 M] #400435
      944,50 kr
    • Placeholder JK783-35CC [10 M] #400436
      988,80 kr
    • Placeholder JK783-38CC [10 M] #400437
      1 038,90 kr
    • Placeholder JK783-44CC [10 M] #400438
      1 155,10 kr
    • Placeholder JK783-51CC [10 M] #400439
      1 272,00 kr
