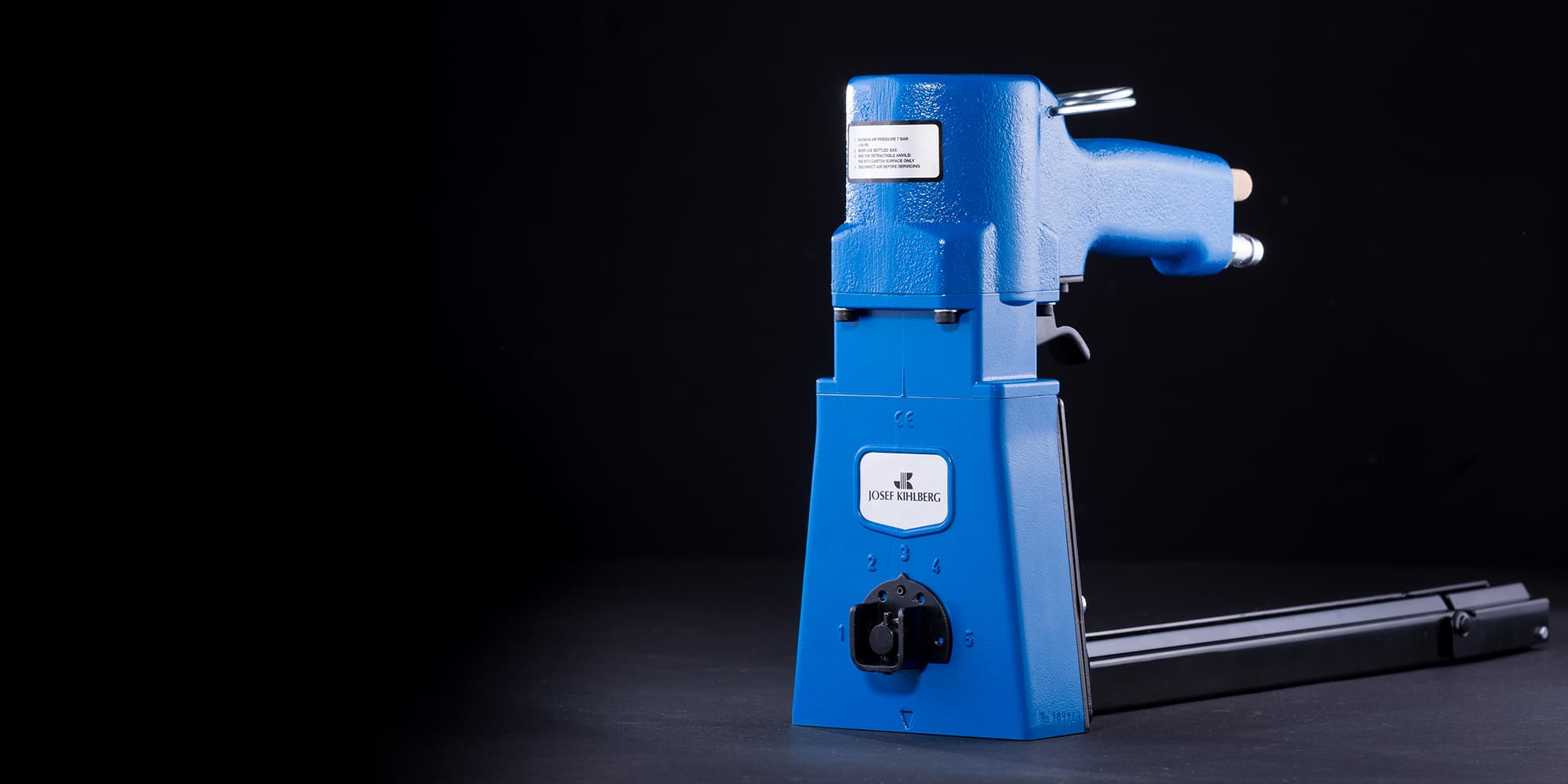

Lokkstifter 561-15PN

Lokkstifter 561-15PN

Vår holdbare og pålitelige svenskprodusert lokkstifter 561-15PN pneumatisk toppstiftemaskin for JK561-15 stifter. Med vår pålitelige 561-15PN toppstiftemaskin kan du forsegle pappesker fra utsiden i løpet av sekunder etter at de er pakket. Verktøyet er enkelt å justere for ulike stiftdybder, har nøyaktig (repeterbar) stifting og en komplett stiftesyklus. Sammenlignet med andre fremgangsmåter for forsegling, reduserer stifting både material- og arbeidskostnader.
En klassiker!

Tekniske Data

  • Artikkelnr 125003
  • Vekt 2.5 kg ( 5.5 lbs )
  • Måle 470 × 100 × 305 mm ( 18.5 x 3.9 x 12.0 in )
  • Magasinkapasitet 150 Kramper
  • Hakaspituus 15 mm ( 5/8 in )
  • Maksimalt tillatt lufttrykk 7 bar ( 102 psi )
  • Lubrication Ja
  • Tilbehør

    • O-ring kit 561PN O-ring kit 561PN #143017
      168,55 kr
    • Repair kit 561-15PN Repair kit 561-15PN #143018
      859,61 kr
    • O-ring grease O-ring grease #184943
      38,52 kr
    • Lubrication oil 0.2l Lubrication oil 0.2l #733007
      130,35 kr
    • Placeholder Brakett #125501
      2 363,34 kr

    Kramper

    M=Mille=1000 stk
    • JK561-15K JK561-15K [25 M] #400145
      1 549,00 kr
    • JK561-15G JK561-15G [25 M] #400144
      1 934,00 kr

    Reservedeler

    Klikk på tallene for å velge deler
  • Lokkstifter 561-15PN Reservedeler
    Placeholder
    #145165

    Pin

    24,43 kr
    Retainer
    #951020

    Retainer

    14,57 kr
    Placeholder
    #945006

    Pin

    16,52 kr
    Placeholder
    #164023

    Driver 561-15 L=64mm

    219,15 kr
    Placeholder
    #945009

    Pin

    14,57 kr
    Placeholder
    #945036

    Tension pin

    14,57 kr
    Placeholder
    #173063

    Spring

    15,36 kr
    Placeholder
    #165054

    Penetration control knob

    69,84 kr
    Placeholder
    #134055

    Pivot block f anvil hold

    570,67 kr
    Rear screw
    #946516

    Rear screw

    14,57 kr
    Placeholder
    #947013

    Washer

    14,57 kr
    Placeholder
    #155100

    Lower body

    1 010,10 kr
    Placeholder
    #945016

    Tensioning pin

    14,57 kr
    Placeholder
    #163211

    Penetration eccentric

    216,70 kr
    Placeholder
    #161039

    Back plate

    238,40 kr
    Placeholder
    #132716

    Magazine 561-15 l=350mm

    1 132,97 kr
    Placeholder
    #946591

    Screw

    14,57 kr
    Tensioning pin
    #945022

    Tensioning pin

    14,57 kr
    Placeholder
    #132713

    Rail compl 561-15 l=350mm

    685,10 kr
    Safety ring
    #951035

    Safety ring

    14,57 kr
    Placeholder
    #139044

    Magazine breech cpl

    217,97 kr
    Feed spring
    #174021

    Feed spring

    172,22 kr
    Roller 561-18
    #150071

    Roller 561-18

    96,31 kr
    Placeholder
    #158038

    Anvil hook left 561-15

    225,19 kr
    Placeholder
    #156119

    Anvil holder right. left

    276,91 kr
    Placeholder
    #163133

    Anvil link

    17,89 kr
    Placeholder
    #158037

    Anvil hook right 561-15

    225,19 kr
    Placeholder
    #161054

    Connecting yoke

    780,15 kr
    Placeholder
    #945018

    Tension pin

    14,57 kr
    Screw
    #946662

    Screw

    14,57 kr
    Washer
    #947032

    Washer

    14,57 kr
    Placeholder
    #139455

    Cylinder chassis

    780,15 kr
    O-ring
    #972142

    O-ring

    12,27 kr
    Placeholder
    #191113

    Piston rod 561PN

    338,36 kr
    Washer
    #947015

    Washer

    14,57 kr
    Placeholder
    #972017

    O-ring

    19,49 kr
    Placeholder
    #191013

    Piston 561pn

    216,70 kr
    Nut
    #946004

    Nut

    14,57 kr
    Piston stop
    #149057

    Piston stop

    55,39 kr
    Placeholder
    #972002

    O-ring

    16,52 kr
    Placeholder
    #133161

    Pusher cpl 561-15

    199,86 kr
    Placeholder
    #150338

    Bushing

    29,47 kr
    Placeholder
    #163109

    Release latch

    51,82 kr
    Placeholder
    #163298

    Toggle latch 561PN

    86,68 kr
    Screw
    #946518

    Screw

    16,52 kr
    Placeholder
    #145049

    Pin

    57,79 kr
    Placeholder
    #945015

    Tensioning pin

    11,47 kr
    Placeholder
    #173149

    Spring

    25,34 kr
    Placeholder
    #173049

    Return spring

    56,64 kr
    Placeholder
    #163152

    Valve stem toggle 561PN

    261,32 kr
    Placeholder
    #146061

    Screw

    32,56 kr
    Placeholder
    #947001

    Lock washer

    14,57 kr
    Placeholder
    #945011

    Tensioning pin

    14,57 kr
    Placeholder
    #165028

    Trigger

    86,68 kr
    Screw
    #946608

    Screw

    14,57 kr
    Placeholder
    #147079

    Washer

    26,03 kr
    Placeholder
    #178021

    Bushing

    34,16 kr
    O-ring
    #972020

    O-ring

    16,52 kr
    Placeholder
    #191115

    Piston valve 561PN

    225,19 kr
    Placeholder
    #972009

    O-ring

    16,52 kr
    Placeholder
    #173055

    Valve spring

    37,38 kr
    Placeholder
    #136112

    Cylinder body

    1 547,11 kr
    Placeholder
    #170515

    Hook

    36,00 kr
    Nipple 1/4"
    #987023

    Nipple 1/4″

    42,19 kr
    Sound absorber
    #971004

    Sound absorber

    83,14 kr
