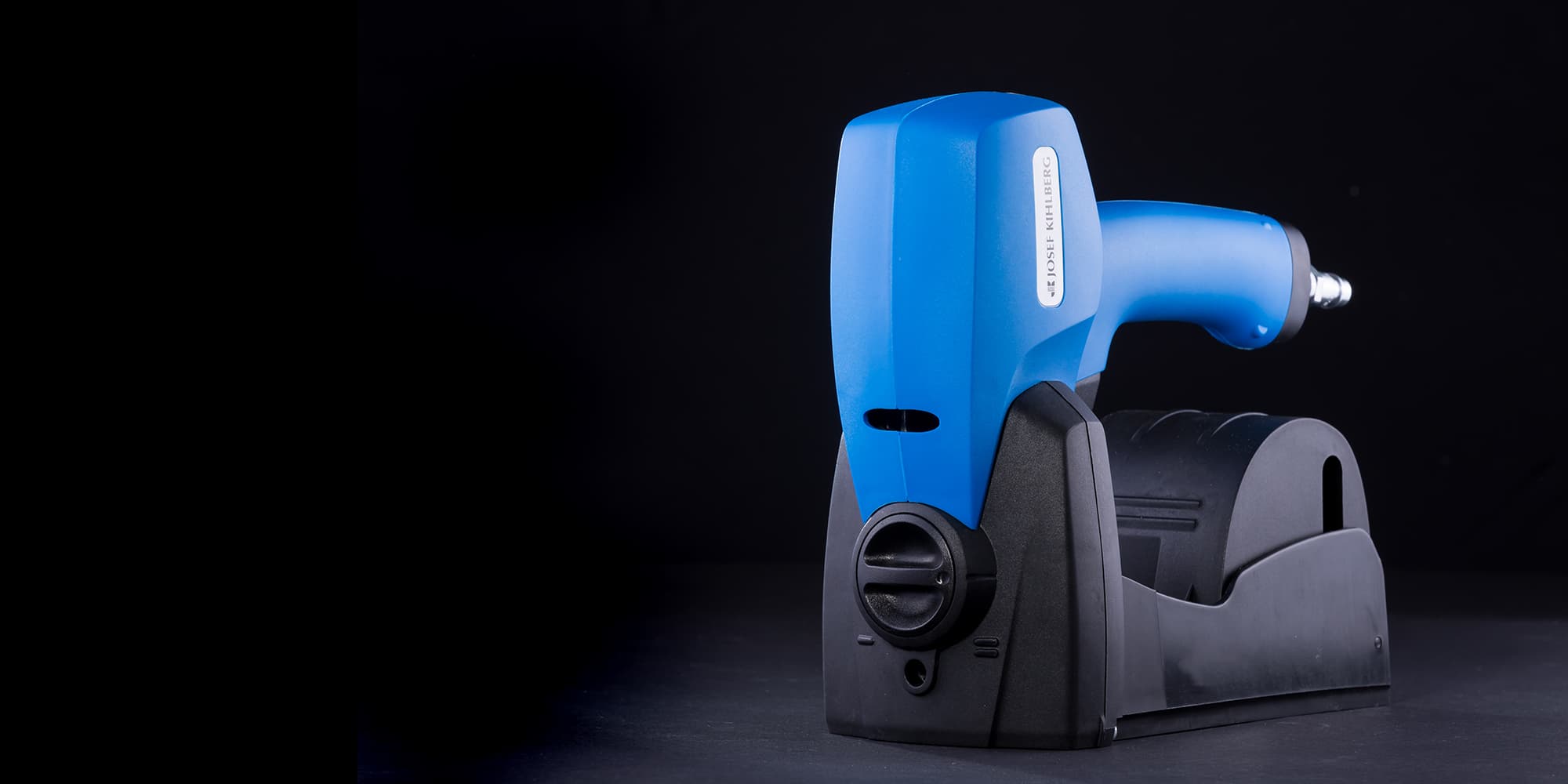

Lokkstifter R557PN

Lokkstifter R557PN

Vår svenskprodusert R557PN pneumatiske rullestiftemaskin bør brukes hvis lastekapasitet er en avgjørende faktor. Verktøyet er raskt lastet og er lett med en rull bestående av 1 000 stifter. Lokkstifter R557PN er utstyrt med dekkhetter av konstruksjonsplast som gir en ekstremt lav vekt, slitasjedeler er laget av metall. JK557 stifter med benlengder JK557-15 og 18 mm gjør justering av verktøyet enkelt. Lokkstifter R557PN er enkelt å justere for ulike stiftdybder, har nøyaktig (repeterbar) stifting og en komplett stiftesyklus.

Tekniske Data

  • Artikkelnr 125111
  • Vekt 1.8 kg ( 4.0 lbs )
  • Måle 235 × 104 × 205 mm ( 9.3 x 4.1 x 8.1 in )
  • Magasinkapasitet 1000 Kramper
  • Hakaspituus 15 – 18 mm ( 5/8 – 3/8 in )
  • Maksimalt tillatt lufttrykk 8 bar ( 116 psi )
  • Benlengde 235 mm ( in )
  • Lubrication Ja

    • Tilbehør

    • O-ring kit a,c,R PN O-ring kit a,c,R PN #143109
      216,70 kr
    • Repair kit R557 Repair kit R557 #143149
      1 504,92 kr
    • O-ring grease O-ring grease #184943
      38,52 kr
    • Lubrication oil 0.2l Lubrication oil 0.2l #733007
      130,35 kr

    Kramper

    M=Mille=1000 stk
    • Placeholder JK557-15K [20 M] #185264
      2 149,37 kr
    • Placeholder JK557-18K [20 M] #185265
      2 268,40 kr

    Reservedeler

    Klikk på tallene for å velge deler
  • Lokkstifter R557PN Reservedeler
    Placeholder
    #134321

    Piston cpl R555-557

    286,54 kr
    Placeholder
    #139536

    Handle cpl. R555PN

    438,24 kr
    Placeholder
    #132365

    Magazine housing R557

    679,62 kr
    Tube
    #187062

    Tube

    114,43 kr
    Rear cap
    #179114

    Rear cap

    36,00 kr
    O-ring
    #972176

    O-ring

    8,83 kr
    Hanger
    #176424

    Hanger

    110,76 kr
    Screw
    #946780

    Screw

    8,83 kr
    CE Lable
    #110313

    CE Lable

    17,89 kr
    Placeholder
    #110335

    Tool lable R557

    26,03 kr
    Placeholder
    #139541

    Handle cpl.R557

    438,24 kr
    Valve a.c.R
    #136169

    Valve a.c.R

    742,89 kr
    O-ring
    #972030

    O-ring

    16,52 kr
    O-ring
    #972020

    O-ring

    16,52 kr
    Stem
    #191206

    Stem

    62,61 kr
    Spring
    #173185

    Spring

    16,52 kr
    Washer
    #147128

    Washer

    17,89 kr
    O-ring
    #972077

    O-ring

    16,52 kr
    O-ring
    #972084

    O-ring

    16,52 kr
    Trigger compl
    #133179

    Trigger compl

    133,69 kr
    Pin
    #945116

    Pin

    17,89 kr
    Placeholder
    #166112

    Guide left

    156,52 kr
    Placeholder
    #947038

    Washer

    16,52 kr
    Placeholder
    #946776

    Screw

    10,67 kr
    Placeholder
    #166111

    Guide right

    156,52 kr
    Penetration eccentric
    #163321

    Penetration eccentric

    234,82 kr
    Bushing
    #150420

    Bushing

    54,24 kr
    Screw
    #946760

    Screw

    8,83 kr
    Washer
    #947062

    Washer

    12,96 kr
    Screw
    #946761

    Screw

    8,83 kr
    Placeholder
    #166124

    Nozzle plate R557

    589,93 kr
    Screw
    #946769

    Screw

    8,83 kr
    Placeholder
    #158312

    Anvil R555.556.557

    1 181,12 kr
    Placeholder
    #161382

    Pusher R557

    1 131,70 kr
    Placeholder
    #173187

    Feed spring

    16,52 kr
    Placeholder
    #945118

    Tension pin

    13,87 kr
    Placeholder
    #158313

    Bracket R555.R556.R557

    363,59 kr
    Placeholder
    #173188

    Spring

    27,75 kr
    Placeholder
    #147132

    Washer

    36,00 kr
    Placeholder
    #147131

    Washer

    26,03 kr
    Placeholder
    #181230

    Shaft

    77,05 kr
    Placeholder
    #160211

    Lever

    27,75 kr
    Placeholder
    #945018

    Tension pin

    14,57 kr
    Placeholder
    #170186

    Protecting cover R555-557

    173,37 kr
    Placeholder
    #946774

    Screw

    10,67 kr
    Placeholder
    #166102

    Centrical plate

    19,49 kr
    Placeholder
    #174077

    Plate spring

    19,49 kr
    Placeholder
    #181231

    Shaft R555-556

    77,05 kr
    Retainer
    #951020

    Retainer

    14,57 kr
    Placeholder
    #110336

    Skilt R557PN

    28,01 kr
    Placeholder
    #176465

    Bottom washer R555-557

    173,37 kr
    Placeholder
    #946775

    Screw

    10,67 kr
    Screw
    #946687

    Screw

    23,06 kr
    Placeholder
    #163337

    Bending die R557

    612,86 kr
    Placeholder
    #164160

    Driver blade R557

    67,97 kr
    Placeholder
    #945119

    Pin

    21,10 kr
    Latch
    #960020

    Latch

    36,00 kr
    Pin
    #945115

    Pin

    16,52 kr
    Placeholder
    #134324

    Clinch unit compl

    1 560,29 kr
    Anvil hook 15-18mm
    #158316

    Anvil hook 15-18mm

    216,70 kr
    Spacer
    #147127

    Spacer

    19,49 kr
    Pin
    #945096

    Pin

    19,49 kr
    Anvil holder
    #176417

    Anvil holder

    570,67 kr
    Placeholder
    #163326

    Link c561

    66,27 kr
    Placeholder
    #161368

    Connecting yoke

    363,59 kr
    Screw
    #946651

    Screw

    17,89 kr
    Front Section
    #139542

    Front Section

    190,23 kr
    Spring
    #173155

    Spring

    38,90 kr
    Cage
    #150421

    Cage

    190,23 kr
    Casting
    #139525

    Casting

    1 046,28 kr
    Penetration control knob
    #165124

    Penetration control knob

    66,27 kr
    O-ring
    #972142

    O-ring

    12,27 kr
    Gasket
    #148064

    Gasket

    27,75 kr
    Clinch adjustment nut
    #146245

    Clinch adjustment nut

    57,79 kr
    Fix ring
    #950006

    Fix ring

    17,89 kr
    Piston rod a.c.R
    #191205

    Piston rod a.c.R

    138,51 kr
    Washer
    #947015

    Washer

    14,57 kr
    Placeholder
    #191210

    Piston R555-557

    138,51 kr
    O-ring
    #972115

    O-ring

    24,43 kr
    Nut
    #946004

    Nut

    14,57 kr
    Piston stop
    #149057

    Piston stop

    55,39 kr
    Cylinder
    #190203

    Cylinder

    533,40 kr
    Top cap
    #190204

    Top cap

    156,52 kr
